HKNC-560PLUS 5+1AXIS stone bridge sawHKNC-560PLUS 5+1軸石材橋式切割機

領跑智能制造新“石”代

HKNC-560PLUS 5+1AXIS stone bridge sawHKNC-560PLUS 5+1軸石材橋式切割機

所屬品牌：華隆

所屬類別：板材切割設備

想了解更多相關產品信息，請聯系我們！

0594-2197723

hualongmc@163.com

我要咨詢

產品說明
技術參數

采購可留言電話號碼，我們會與您聯系！點擊進入1688查看更多產品

Purchase please leave a message phone and email, we will contact you!

HKNC-560+CNC石材切割機具有 5 軸插補控制功能，是一款專為車間需求而設計的多功能數控石材切割、成型和雕刻機，兼具簡潔性與最大通用性。它廣泛用于切割天然和人造石材以及陶瓷板材。
功能：
* 使用圓盤鋸具進行垂直、傾斜和水平切割
* 通過輪廓切割進行曲線切割
* 采用主軸工具（如鉆頭、銑刀和挖掘輪）進行加工
* 用于沉孔切割、輪廓加工和雕刻的增量式銑削
將這些功能與意大利 ESA 的數控系統、數字伺服電機以及 CAD/CAM 繪圖軟件相結合，即可輕松完成各種切割操作。HKNC-560 還可配備真空操縱器，用于自動移動板材，以在切割過程中優化工件的使用。

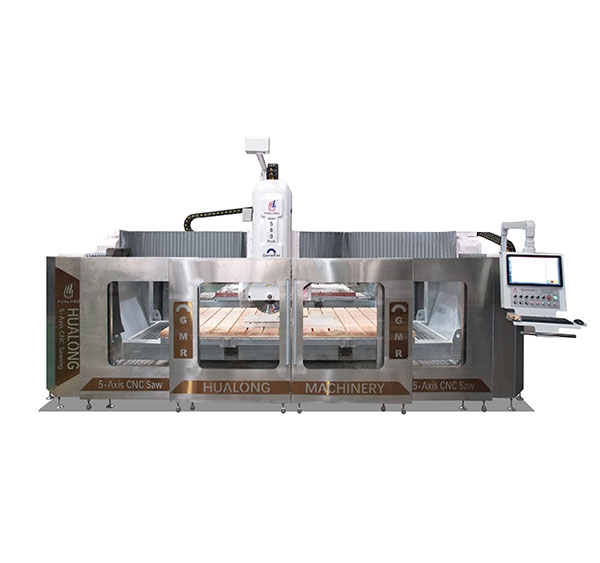

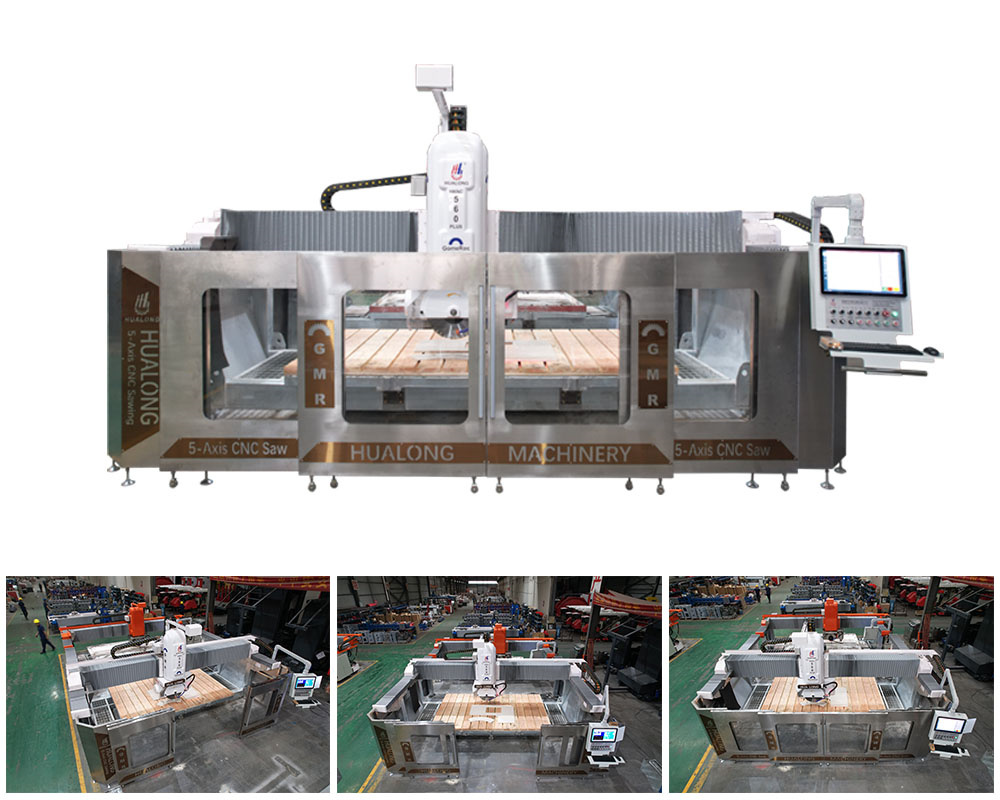

HKNC-560+with 5 axis interpolation controlled, is a multifunctionalCNC stone cutting, shaping and engraving machinebuilt with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-560 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.

Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving

聯系我們，獲取完整方案!
Contact us to obtain the complete solution!

Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
華隆機械，數控五軸橋切機，四軸橋切機，4+1橋切，5+1橋切，三軸橋切機，紅外線橋切機，石材切機，石材加工廠設備，石材拋光機，石材拋光設備，石材加工中心，臺面加工中心，水刀，水刀切割機，礦山開采設備，礦山圓盤鋸，圓盤雙刀鋸，礦山機，礦山鋸。

TECHNICAL DATA FOR HKNC-560
Diameter of saw blade	?400-?560	mm
Dimension of working platform	3500x2100	mm
Max. cutting length	3500	mm
Max. cutting thickness	150	mm
Max. lifting stroke	300	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	18.5	kw
Power of cutter frame reciproctating motor	2	kw
Power of crossbeam shifting motor	1.1	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Power of electric spindle	5.5	kw
Gross power	32.5	kw
Water consumption	2	m3/h
Gross weight	5900	kg
Dimensions (L x W x H)	5900x3380x3000	mm
