HLCC-3/7 Multi-disc Cross Cutter縱橫切割機
所屬品牌：華隆
所屬類別：產品庫
想了解更多相關產品信息，請聯系我們！
0594-2197723
hualongmc@163.com
- 產品說明
- 技術參數
多盤式切割機
HLCC-3/7 是一款專為將花崗巖和大理石板材切割至所需尺寸而設計的自動化切割生產線。最大切割深度為 70 毫米。它可以配備多達 7 個獨立的切割組。這是一款用于批量切割至尺寸的板材的超高效率設備。
特點/特征
1) 要切割的板材放置在一臺沿著工作臺移動的傳送帶上。該傳送帶由多層帶有厚橡膠涂層的帶子組成，這種涂層非常適合在使用金剛石圓盤切割器時抵抗切割造成的損傷。
2) 當板材到達隱蔽的終點停止裝置時，它會自動停止。
3) 一個電動縱向終點停止裝置在切割操作期間保持板材保持對齊狀態。
4) 切割操作結束后，切割盤會從工件上抬起，然后回到原來的位置，切割成瓷磚的板材從機器中排出，同時會放入新的板材。
Multi-disc Cross Cutter

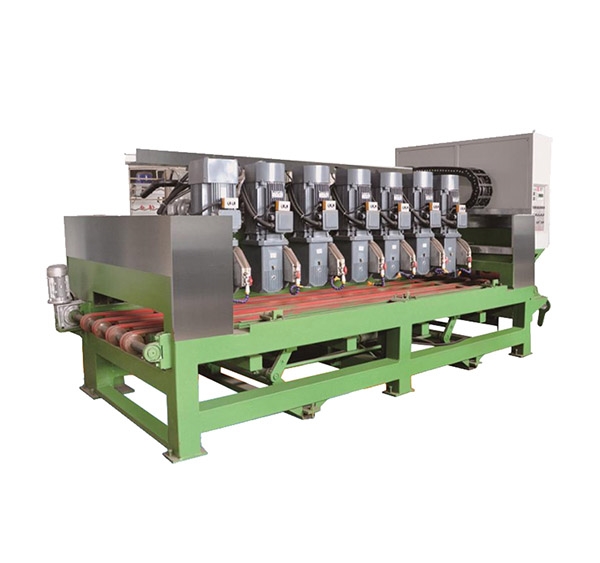

HLCC-3/7 is an automatic cross cutting production line designed for cutting granite and marble slabs to size. The max cutting depth is 70mm. It can be fitted with up to 7 independent cutter groups. This is an extremely high efficiency equipment for slab cutting-to-size mass production.
Features
1) The slab to cut is positioned on a conveyor which travels on the workbench. The conveyor consists of a multilayer belt with a thick rubber coating ideal for resisting cuts caused by the diamond disc cutters when operating.
2) The slab automatically stops when it reaches a concealed end stop.
3) A motorised longitudinal end stop maintains the slab aligned during cutting operations.
4) Once cutting operations have terminated the discs are raised off the workpiece and then returned to their original position and the slab cut into tiles is discharged from the machine and a new slab is fed in.
|
產品型號
|
Name
|
單痊 unit
|
三刃橫切機 3-blade Cross Cutter
|
7刃立式切刀 7-blade Vertical Cutter
|
|
鋸片直徑
|
Diameter of saw blade
|
mm
|
400
|
400
|
|
電機數量
|
Quantity of motor
|
pc
|
3
|
7
|
|
最大切割厚度
|
Max. cutting depth
|
mm
|
70
|
70
|
|
成品規格
|
Finished specification
|
mm
|
300-600
|
300-600
|
|
皮帶速度
|
Speed of belt
|
mm/min
|
0.5-3.2
|
0.5-3.2
|
|
主電機功率
|
Power of main motor
|
kw
|
18.5
|
18.5
|
|
尺寸
|
Dimensions (LxWxH)
|
mm
|
3700*1800*2000
|
4700*2200*2000
|
